HIWIN CG Series Superior Rolling Moment with Cover Strip Linear Guideway

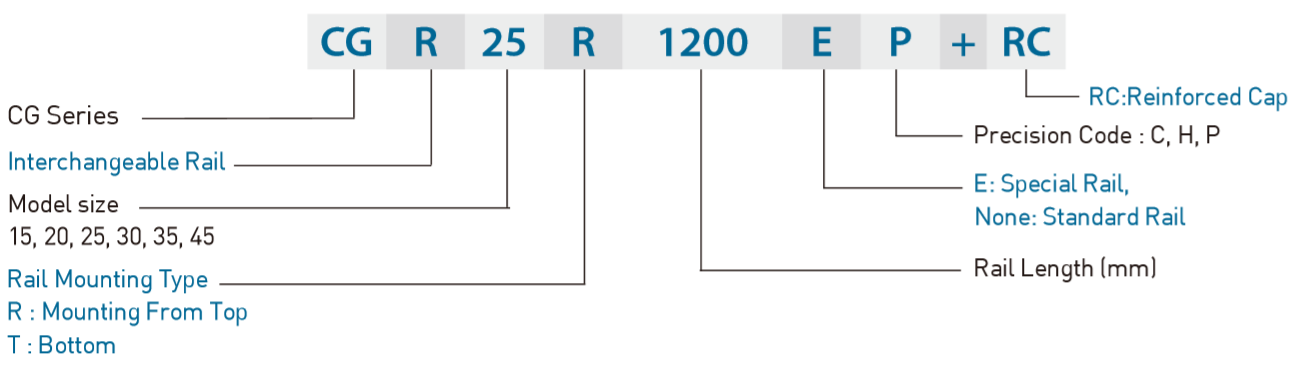

Model Number of CG Series
CG series guideways can be classified into non-interchangeable and interchangeable types. The sizes are identical. The only difference between the two types is that the interchangeable type of blocks and rails can be freely exchanged, and their accuracy can reach up to P class. The model number of CG series contains the size, type, accuracy class, preload class, etc..

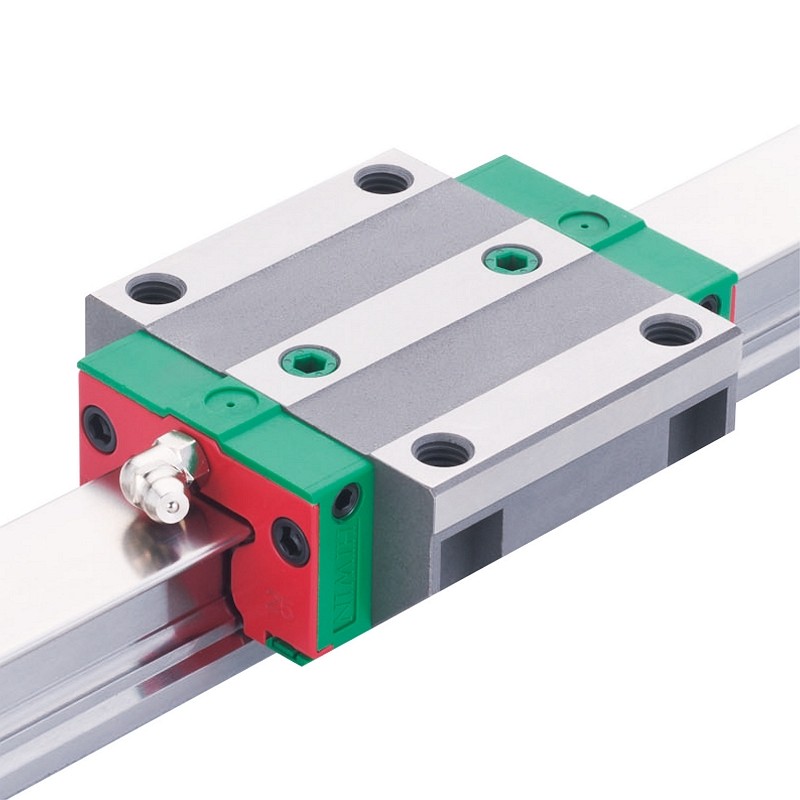

HIWIN CG Series Superior Rolling Moment with Cover Strip linear guideway
FEATURE
O-type Configuration
- Higher rolling moment capacity
New lubrication path design
- Fully lubricated
Rail with cover strip
- Stainless steel material
- Quick installation
- Protects wiper seal from fastener damage.
- Protects block from particles that could collect in mounting hole.
APPLICATIONS
Woodworking Machine、Machine Tool、Grinding Machine、Handling Equipment、Automatic Equipment
Technical Information-Hiwin Linear guideway
