A linear guideway allows a type of linear motion that utilizes rolling elements such as balls or rollers. By using re-circulating rolling elements between the rail and the block, a linear guideway can achieve high precision linear motion.

Advantages and Features of hiwin linear guideways：high positional accuracy, long life with high motion accuracy, High speed motion is possible with a low driving force, equal loading capacity in all directions, easy installation, easy lubrication, interchangeability.

FEATURE

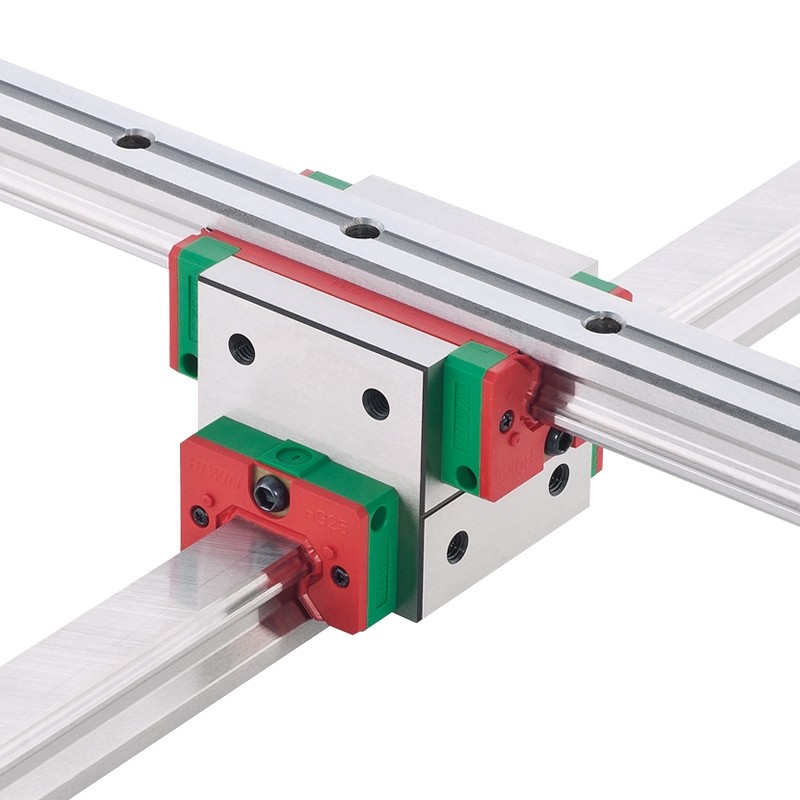

More compact design

- Eliminates fasterner palte for saving equipment weight and increasing work space.

High positional accuracy

- Two rails are machined with precision in relative straightness. Extremely high accuracy in orthogonality is achieved.

High torsional rigidity

- The rigidity of AG block is 50% higher than of a combination of two HG blocks secured together back-to-back with bolts.

Technical Information-Hiwin Linear guideway
