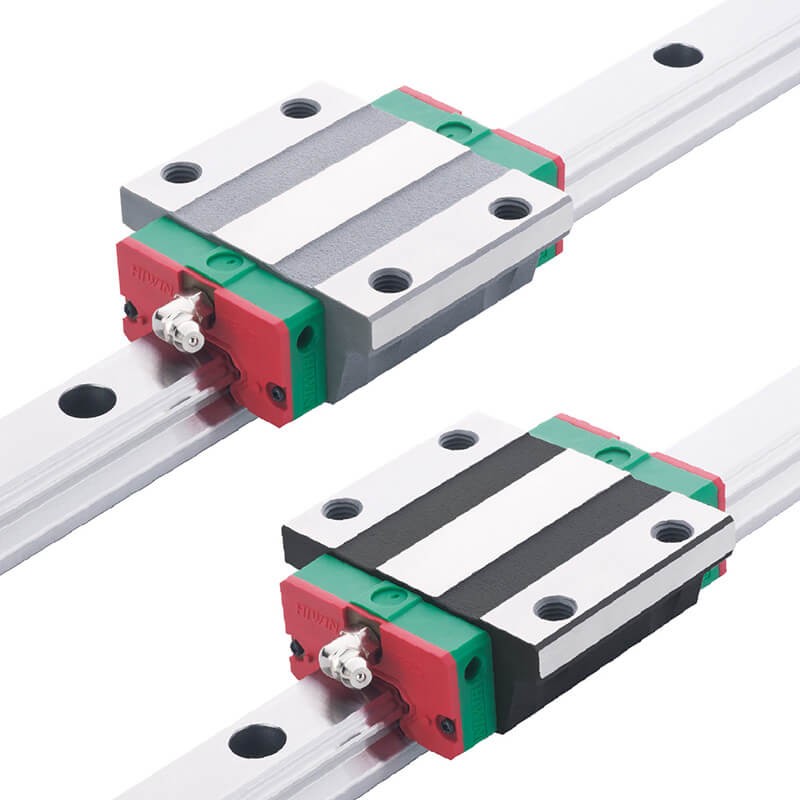

HIWIN QE Series Quiet Linear Guideway

The development of HIWIN-QE linear guideway is based on a four-row circular-arc contact. The HIWIN-QE series linear guideway with SynchMotionTM Technology offers smooth movement, superior lubrication, quieter operation and longer running life. Therefore the HIWIN-QE linear guideway has broad industrial applicability. In the hightech industry where high speed, low noise, and reduced dust generation is required, the HIWIN-QE series is interchangeable with the HIWIN-EG series.


Model Number of QE Series

HIWIN-QE series guideway can be classified into non-interchangeable and interchangeable types. The sizes are identical. The main difference is that the interchangeable blocks and rails can be freely exchanged. Because of dimensional control, the interchangeable type linear guideway is a perfect choice for the client when rails do not need to be paired for an axis. And since the QE and EG share the identical rails, the customer does not need to redesign when choosing the QE series. Therefore the HIWIN-QE linear guideway has increased applicability.

(1) Non-interchangeable type

HIWIN gw_QE_specNomen_US Nomenclature1

(2) Interchangeable type

Model Number of QE Block
HIWIN gw_QE_specNomen_US Nomenclature2
Model Number of QE Rail (QE and EG share the identical rails)
HIWIN gw_QE_specNomen_US Nomenclature3

Technical Information-Hiwin Linear guideway
