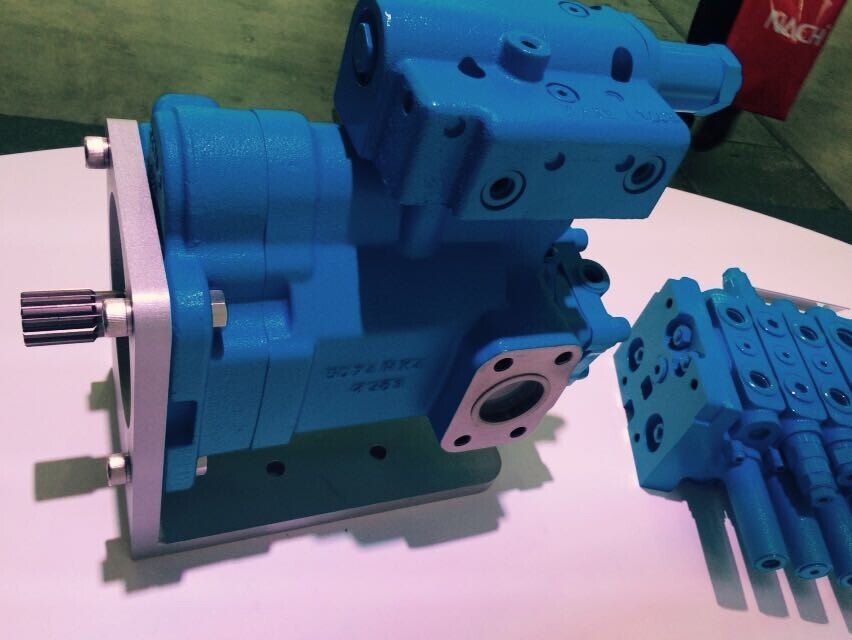

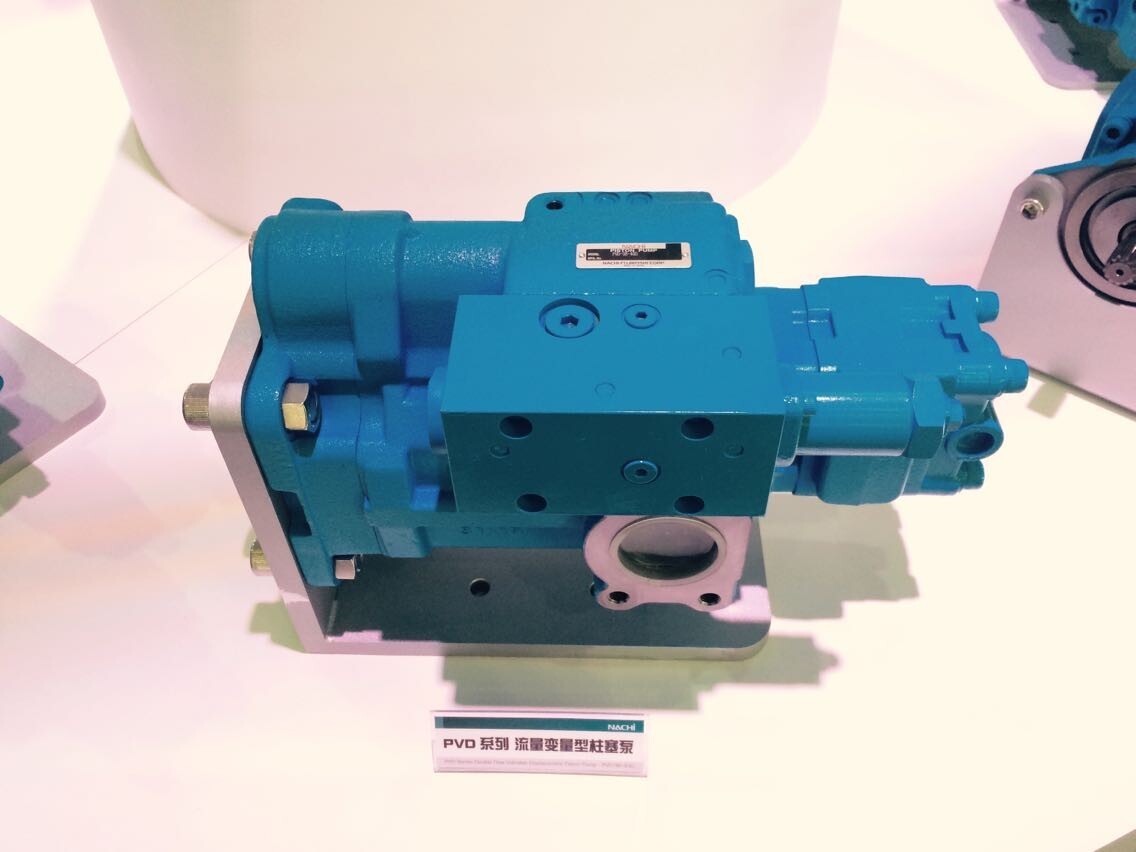

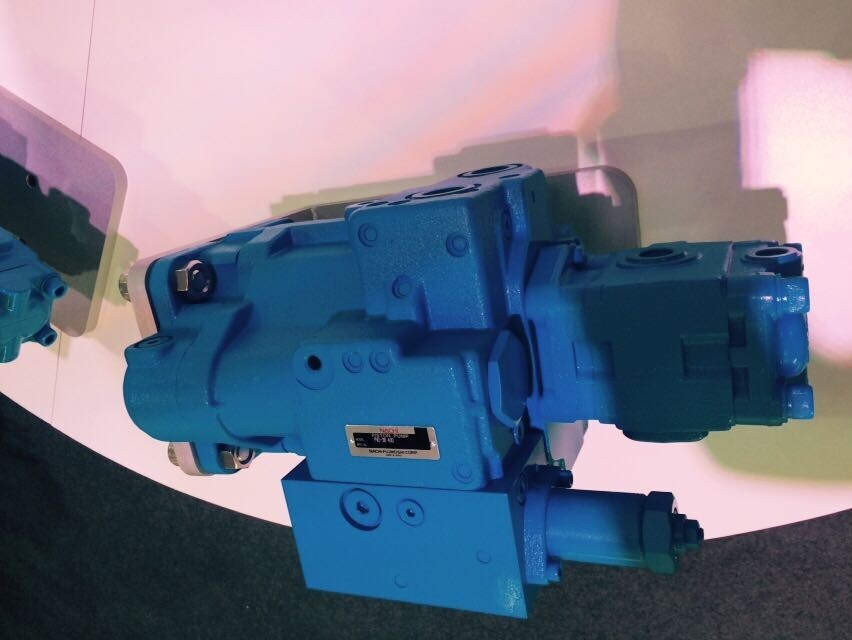

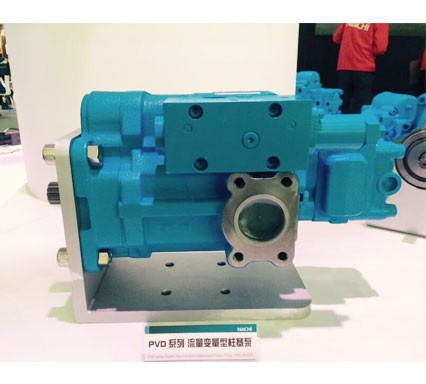

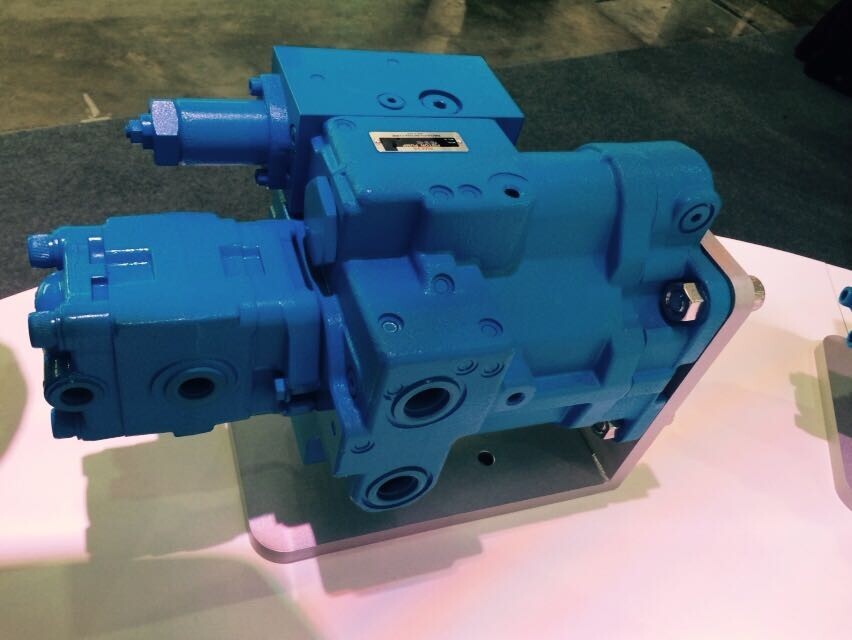

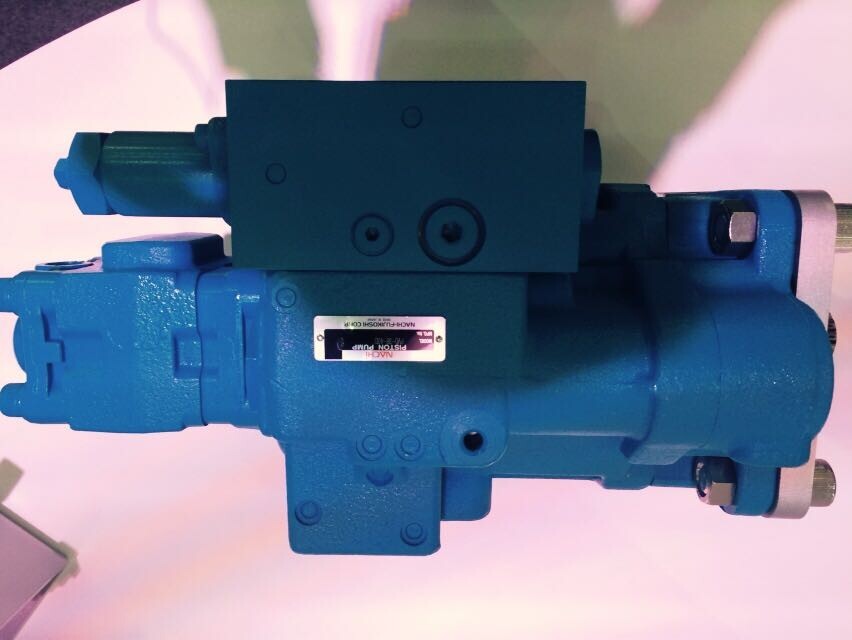

PVD series variable flow piston pump
PVD series variable flow piston pump
Features of PVD series variable flow piston pump：
Two streams of the same flow are ejected from one pump to ensure the straightness of the excavator.
By giving full play to the constant power control of engine power, the speed and production capacity of the machine tool are improved
Compact size for installation in narrow engine rooms
Specification of PVD series variable flow piston pump:
*The specifications of the pump are complete and suitable for the use of 1 ton to 6 ton excavators
*Internal drainage structure is adopted without drainage piping
*Standard equipment constant power control
| 泵规格 | 00B | 0B | 1B | 15B | 2B | 3B |
|---|---|---|---|---|---|---|
| 适用挖掘机实例 (ton) | ～1.5 | ～2.5 | ～3.5 | ～4.0 | ～5.5 | ～6.0 |
| 容量 (cm3/rev) | 8 × 2 | 12 × 2 | 17 × 2 | 19 × 2 | 25 × 2 | 33 × 2 |
| 最高使用压力 (MPa) | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 |
| 最高转数 (min-1) | 2800 | 2800 | 2700 | 2600 | 2600 | 2400 |
| 恒定功率控制 | 标准装备 | |||||
选购件
| 泵规格 | 00B | 0B | 1B | 15B | 2B | 3B |
|---|---|---|---|---|---|---|
| 恒定功率控制 | 标准装备 | |||||
| 动力换挡（全功率控制） | ○ | ○ | ○ | ○ | ○ | ○ |
| 搭载齿轮泵（P3） | ○ | ○ | ○ | ○ | ○ | ○ |

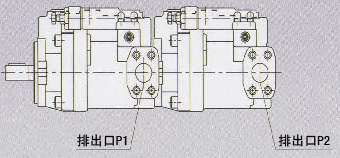

结构

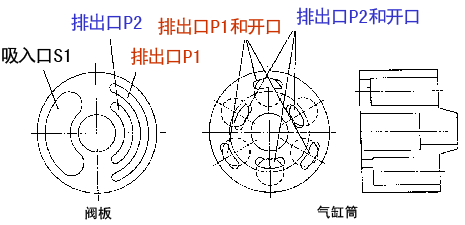

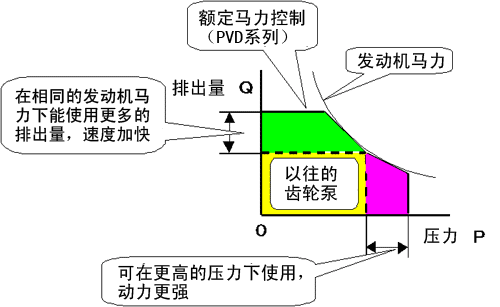

Working principle of PVD series variable flow piston pump：
