Reducer of tapping machine

Reducer of tapping machine
Our tapping machine adopts self-developed pneumatic tapping machine motor and quick change reducer. The service life of our special pneumatic motor is more than 5 times that of the traditional pneumatic motor. Our tapping machine has the widest tapping range of pneumatic and electric suspension tapping machines in China, ranging from M3-M60. All key parts of pneumatic and electric tapping machines are designed and manufactured independently, which better controls the quality of the tapping machine

EMAIL

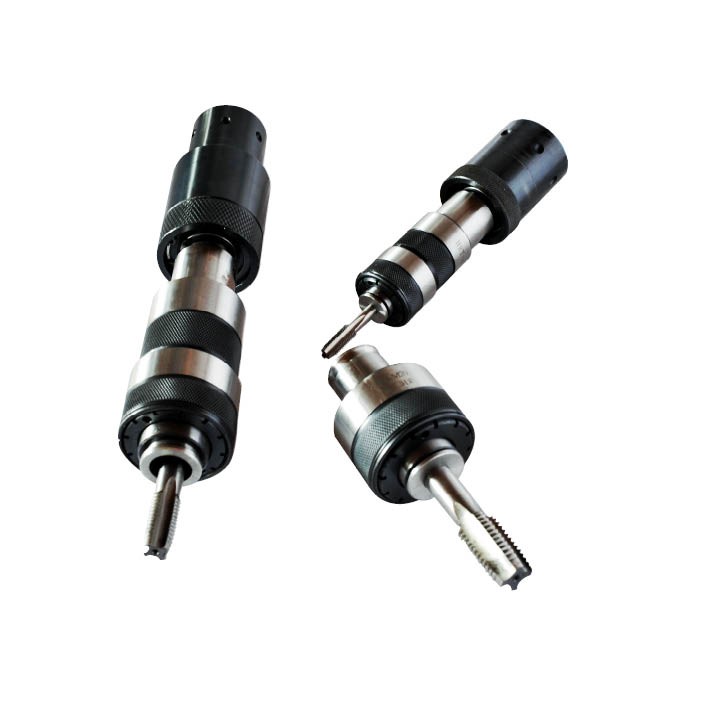

Seven speed change head


With innovative design concept, the output of tapping power head can be converted into speed and torque corresponding to various sizes or materials. Tapping size covers M2-M33

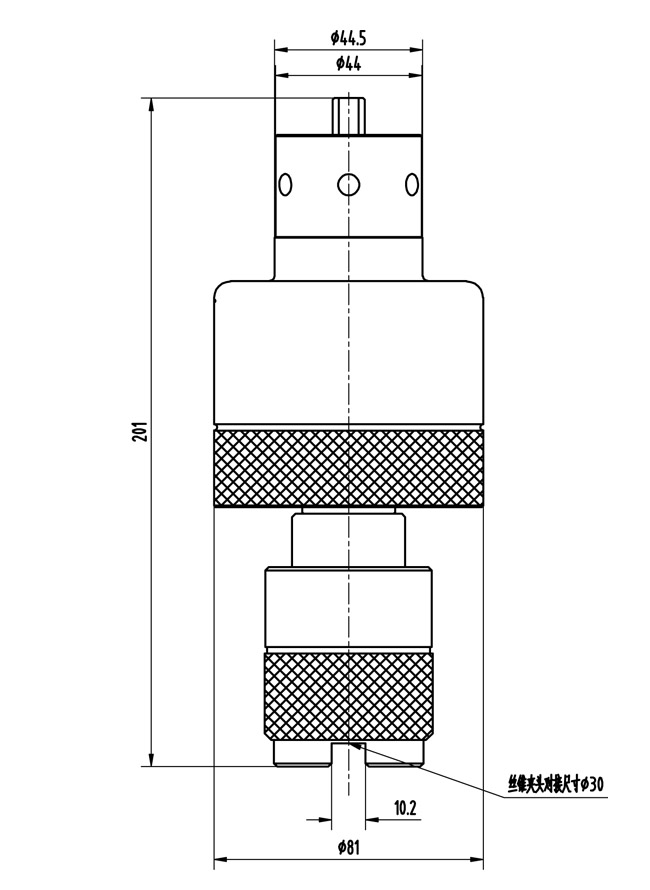

Reducer of <a href=https://www.tianjinleda.com/tapping-machine.html target='_blank'>tapping machine</a>1.jpg

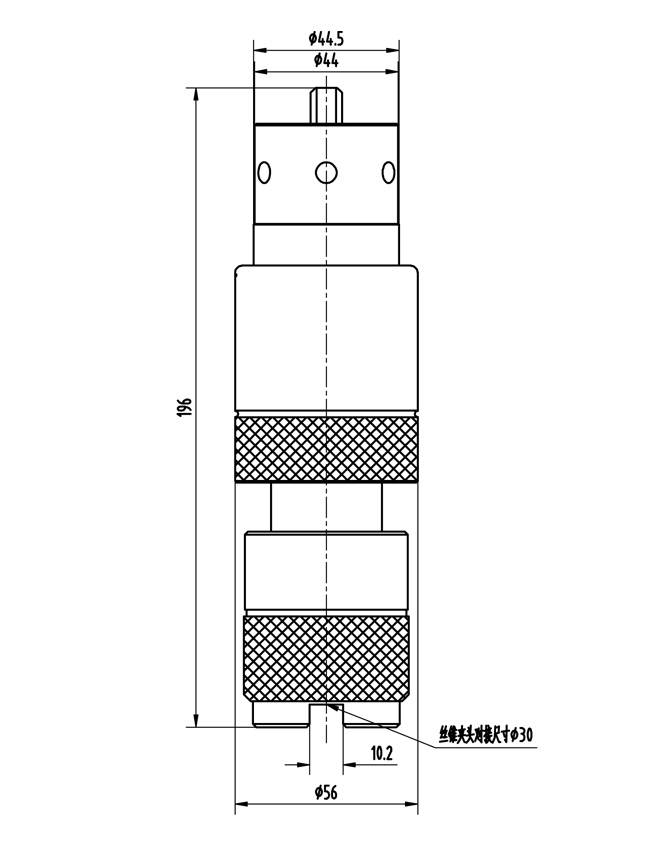

Reducer of tapping machine2.jpg

Model

Maximum speed (rpm)

Maximum torque (Nm)

Diameter of quick coupler (mm)

Maximum tapping capacity Iron castings

Maximum tapping capacity steel

Maximum tapping capacity Non ferrous metals

PI

45

340

¢31/48

M33

M30

M33

PII

90

260

¢31/48

M30

M27

M33

PIII

150

150

¢31

M27

M22

M30

PIV

300

80

¢31

M22

M18

M27

PV

500

33

¢19/¢31

M16

M12

M22

PVI

750

21

¢19

M12

M8

M20

PVII

900

14

¢19

M8

M6

M16
