Nachi brand vane pump VDS series

Nach

Features of BuErYue vane pump VDS series

High efficiency operation to reduce kinetic energy loss.

Quiet running sound.

Small size, light design, simple installation.

Excellent characteristics and acute responsiveness.

High efficiency, long service life and solid structure.

VDC-2 B- 2 A 2 -20

VDC ---- VDC Series High Pressure Variable vane pump

2 ------ Pump size: 1, 2, 3

B ------ Installation mode A foot seat type B flange type

2 ------ Size of oil ring: 1, 2

A ---- Flow characteristic A: quantitative discharge type

2 ---- Pressure adjustment range [Note] See ①

20 --- Design No

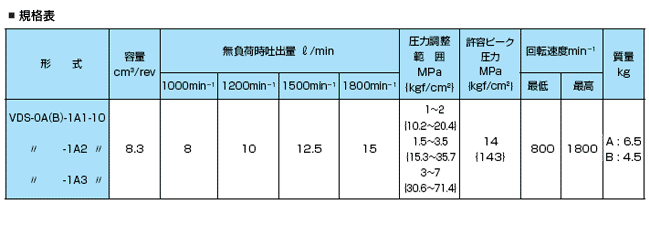

Specification sheet

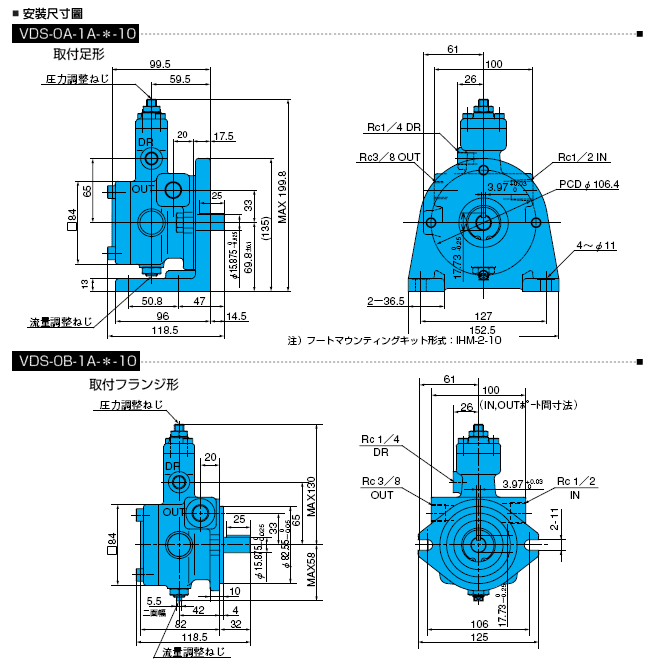

Installation dimensions

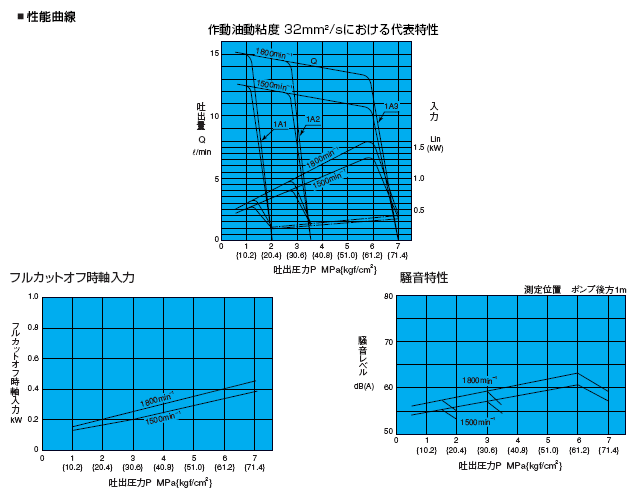

Performance curve
