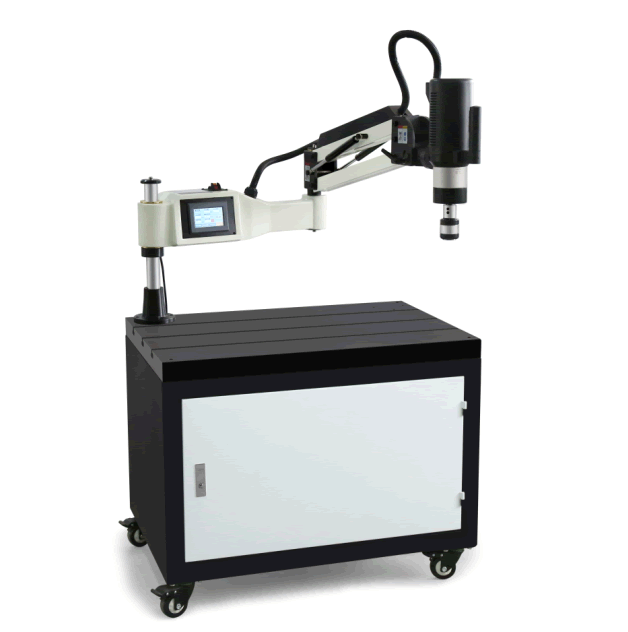

HRT-B-D(M3-16) tapping machine

HRT-B-D(M3-16) tapping machine
Our tapping machine adopts self-developed pneumatic tapping machine motor and quick change reducer. The service life of our special pneumatic motor is more than 5 times that of the traditional pneumatic motor. Our tapping machine has the widest tapping range of pneumatic and electric suspension tapping machines in China, ranging from M3-M60. All key parts of pneumatic and electric tapping machines are designed and manufactured independently, which better controls the quality of the tapping machine

HRT-B-D(M3-16) tapping machine

Power supply type: AC power supply

Rated power: 600W

Power supply voltage: 220V

Tapping range: M3-M16

Speed range: 0-300 rpm (stepless speed regulation)

Working range: horizontal extension 1000mm, vertical extension 500mm adjustable

Basic configuration: one set of upper and lower bracket of articulated boom, one set of servo motor, one set of reducer, one set of tap chuck M3-M16

Optional configuration: universal working head, magnetic base, mobile worktable.
