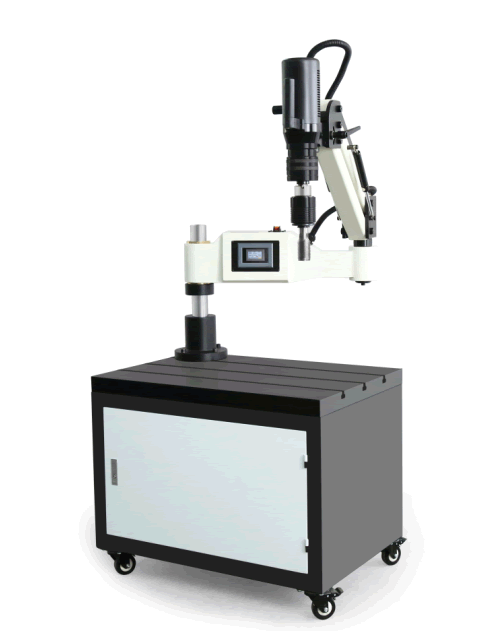

HRT-B-D(M16-48) Tapping machine

HRT-B-D(M16-48) Tapping machine
Our tapping machine adopts self-developed pneumatic tapping machine motor and quick change reducer. The service life of our special pneumatic motor is more than 5 times that of the traditional pneumatic motor. Our tapping machine has the widest tapping range of pneumatic and electric suspension tapping machines in China, ranging from M3-M60. All key parts of pneumatic and electric tapping machines are designed and manufactured independently, which better controls the quality of the tapping machine

HRT-B-D(M16-48) tapping machine

ower supply type: AC power supply

Rated power: 1200W

Power supply voltage: 220V

Tapping range: M6-M24 Speed range: 0-150 rpm (stepless speed regulation)

Working range: 1200mm horizontally, 600mm vertically adjustable

Basic configuration: one set of upper and lower bracket of articulated boom, one set of servo motor, one set of reducer, one set of tap chuck M6-M36

Optional configuration: universal working head, 600-1000KG magnetic base, mobile worktable.
