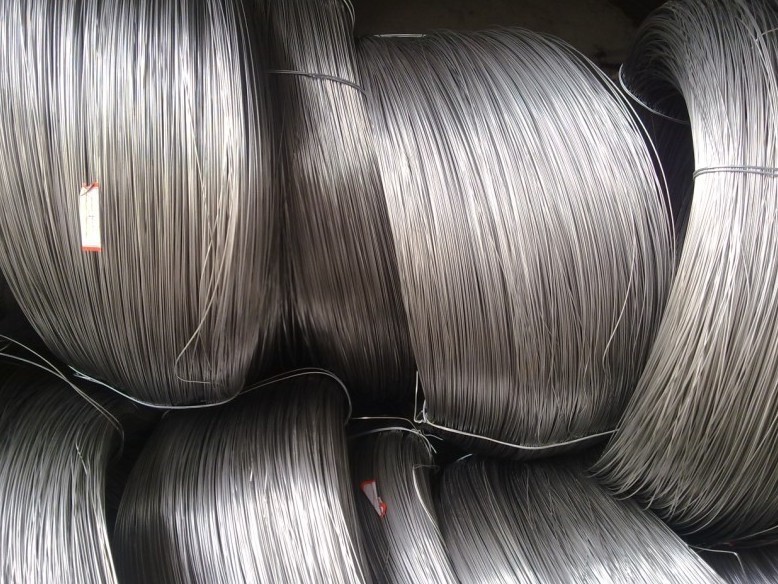

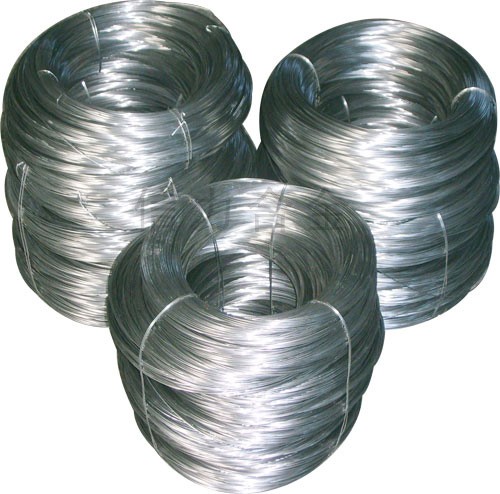

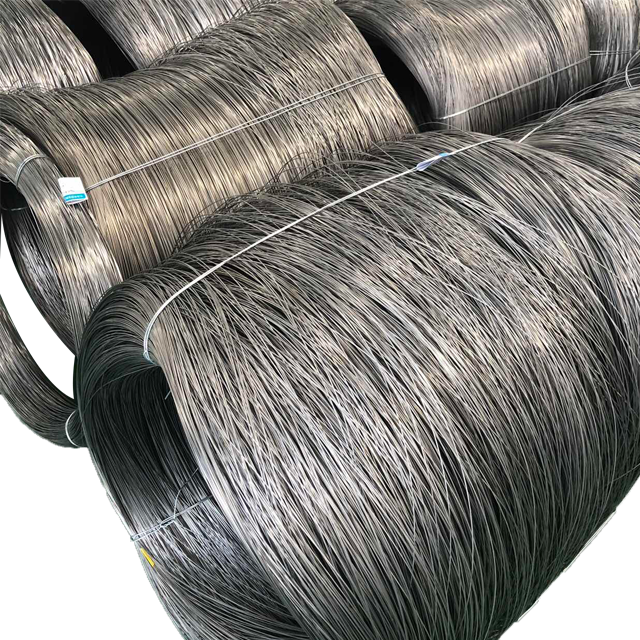

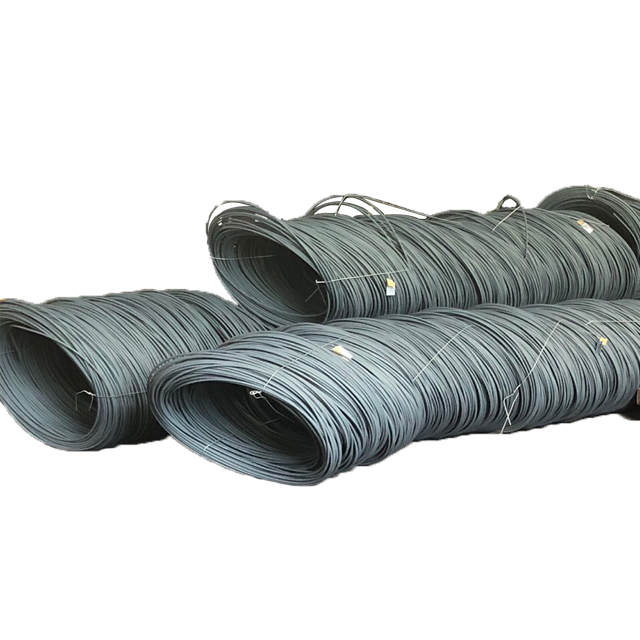

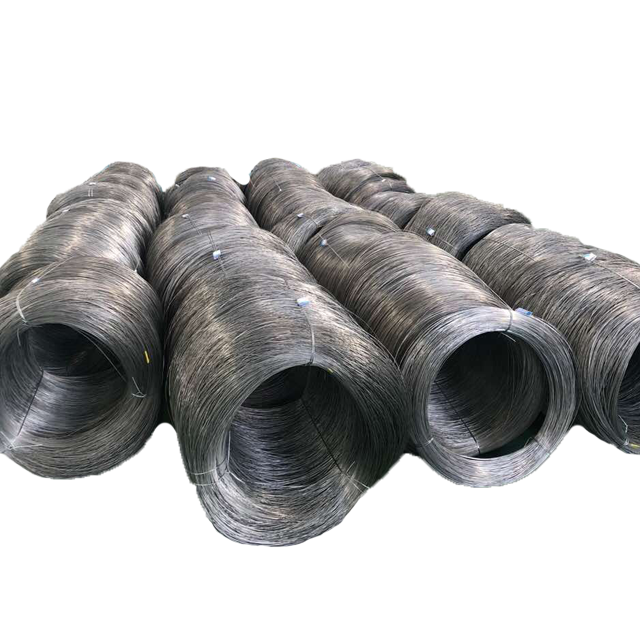

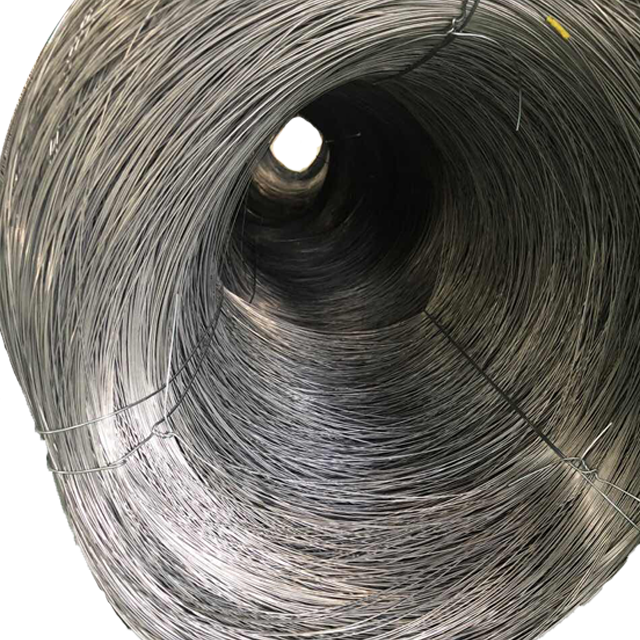

Ferro Chrome Aluminium Heat Resistance Alloy Wire

Electric resistance wire is also called heating wire. It is constructed from an alloy made from nickel (Ni), chromium (Cr), and often iron, primarily it is used as a resistance wire. It is widely used in home appliances and industrial heat treatment area.


Ferro Chrome Aluminium Heat Resistance Alloy Wire

It's also included different types:NiCr Circular Wires: Cr20Ni80, Cr15Ni60, Cr20Ni35, Cr20Ni30, Cr30Ni70, Ni98.FeCrAl Circular Wires, Flat Wires:Ocr25Al5, Ocr21Al6, Ocr21Al4, Ocr23Al5, Ocr21Al6Nb, Ocr27Al7Mo2.


FeCrAl:1Cr13AI4, 0Cr19AI2, 0Cr15AI5, 0Cr20AI5, 0Cr25AI5, 0Cr21AI6 Nb,OCr27Al7Mo2
Ni-Cr :Cr20Ni80,Cr15Ni60, Cr20Ni35, Cr25Ni20 etc.
Manganin:6J12, 6J8, 6J13
New constantan:6J11


Alloy bar dia:10-60mm

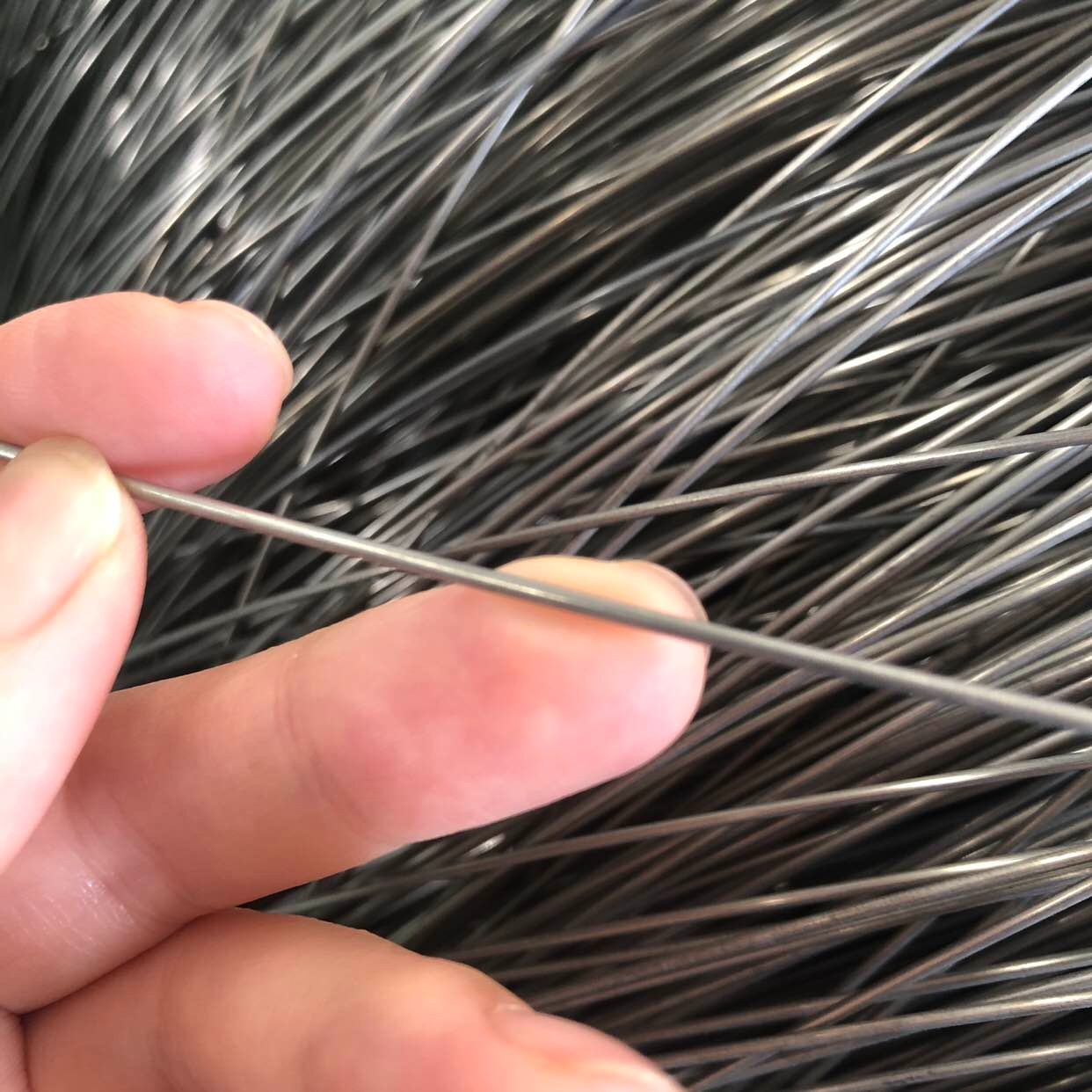

Resistance wire dia.0.05—10mm
Resistance strip thickness0.56—5mm, width6—50mm
Resistance strip wire thickness0.1—0.6mm,strip wire width1—6mm
Cold rolled resistance foil thickness0.05—3mm,strip width4—250mm


Our products (FeCrAl) high resistance electric Heating wire materials are salable and widely used for making heating equipment like industrial furnace, civil heating appliance, various electrical resistors and locomotive braking resistor, infrared equipment, liquefied gas infrared heat-resisting net, different kinds of igniting and radiating electrodes and voltage-regulating resistors for motors and so on in Metallurgical machinery, medical, chemical, ceramics, electronics, electrical appliance, glass and other civil or industrial fields.
