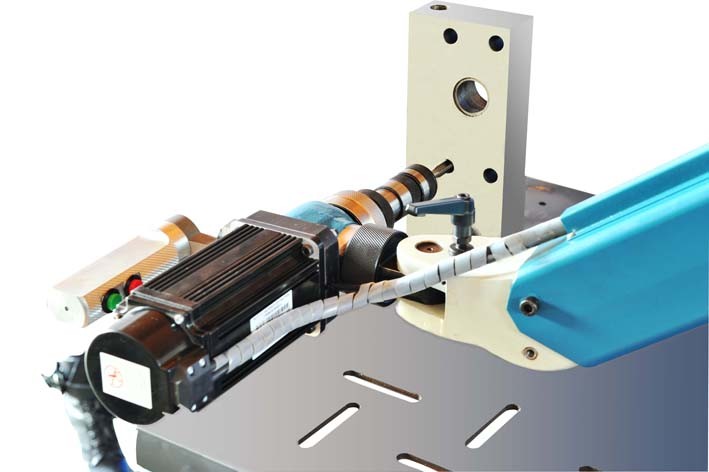

DI-R-M12 Electric Universal Tapping Machine

DI-R product overview

The pneumatic tapping machine is equipped with a mechanical arm that can move up and down, back and forth, left and right, and has a large working radius, breaking through the space limitations of traditional equipment such as lathes, drilling machines, and boring machines. When cutting the thread, it is guided by the tap, which is always perpendicular to the working surface, does not generate tension and pressure, and is in a floating state, thus ensuring the precise geometric size of the thread. When used in conjunction with a mobile worktable, it has unparalleled advantages in thread cutting for large workpieces, complex workpieces, and multi-hole workpieces: flexibility, fast repeat positioning, and high precision.

Features of Electric tapping machine:

Using 220V single-phase AC servo motor, touch-screen display, fixed-torque output digital control speed regulation, position control parameters can be set to precisely control the tapping depth.

 As a companion to CNC equipment, it becomes its auxiliary workbench. Make the operator's waiting time more productive, free the CNC from tedious work such as "tapping" and "chamfering", and greatly improve the efficiency of CNC and operators.

The ergonomic design is easy to operate, comfortable and reduces fatigue.

When working, there is no tension and pressure, the operation is free and flexible, and the balance is accurate and in place.

The speed of the servo motor can be adjusted indefinitely, and the barrel is equipped with an overload protection device, so the tapping damage is small, the screw thread precision is high, and the overload operation will not damage the motor.

Heavier workpieces do not need to be positioned or flipped, and can be easily handled by adding a universal head.

Applicable industries

Machinery, molds, electronics, metallurgy, power plants, coal mines, petroleum

Standard content:

Rack, A230 reduction mechanism, accessory box, tapping oil, tap chuck M5a, M8a, M10a, M12b each, excluding table

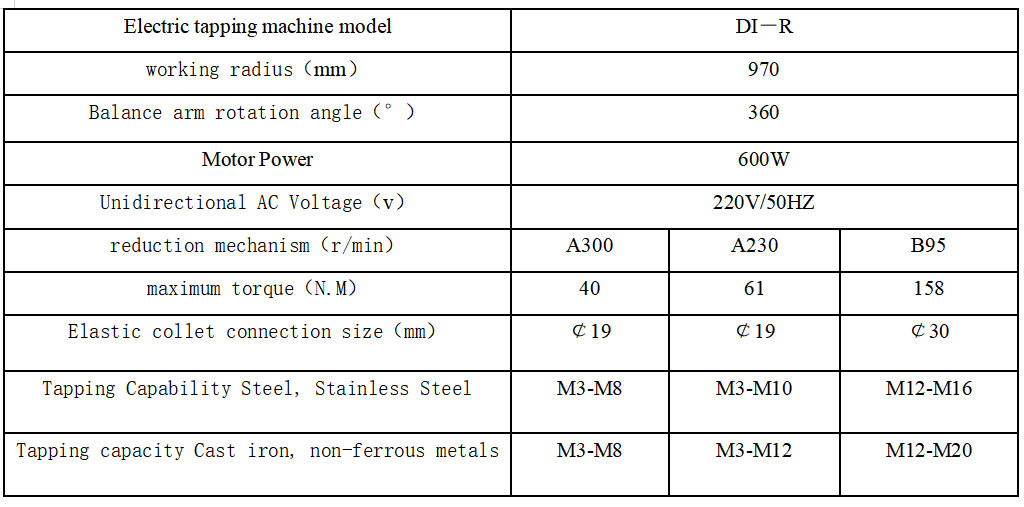

Specification:
